Product Name : 4KW Single Head Urine Bag Tube High Frequency Plastic Welding
Product No : JYHP-1004-2
Product Introduction
Model  JYHP-1004
Name 4KWC-type single-head pneumatic welding machine

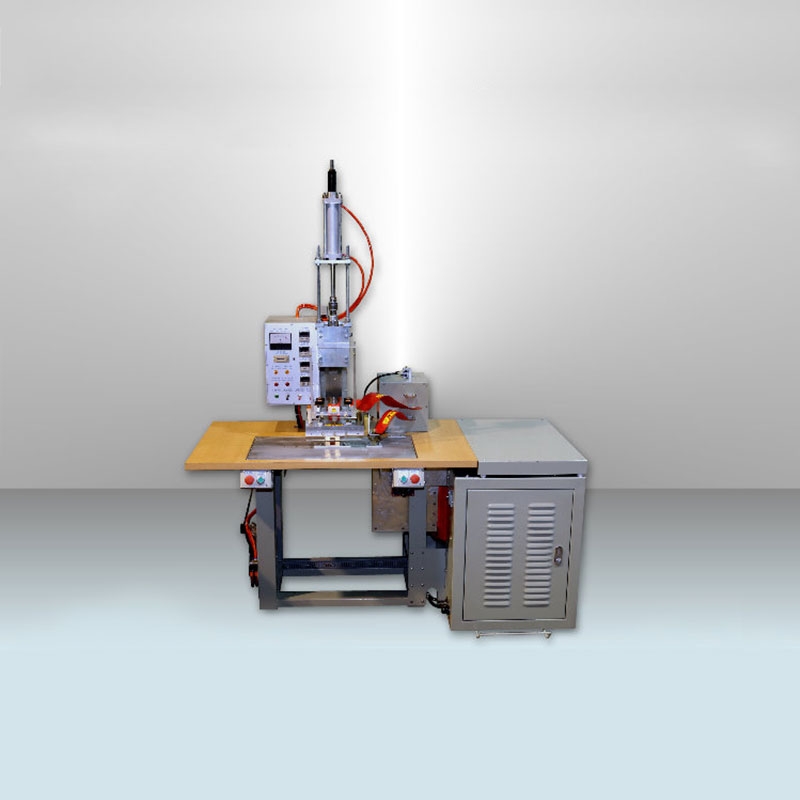

4KW C type Single Head Pneumatic H.F. Welding Machine
Gao Zhou Chuan 4KW
Vacuum tube TOSHIBA    E3062
Upper plate size 32 mm x 250 mm
Lower plate size 350 mm x 760 mm
Area 350 mm x 760 mm
Shock 40.68MHZ
voltage 3 phase 220V/ 380V    50/60HZ
Size 1650 mm x 700 mm x 2190 mm ( L x W x H)
Packing size/Weight/Volume 1850 mm x 900 mm x 2400 mm
NW:280Kg    GW:470Kg
133Cu'ft ; 3.8CBM
